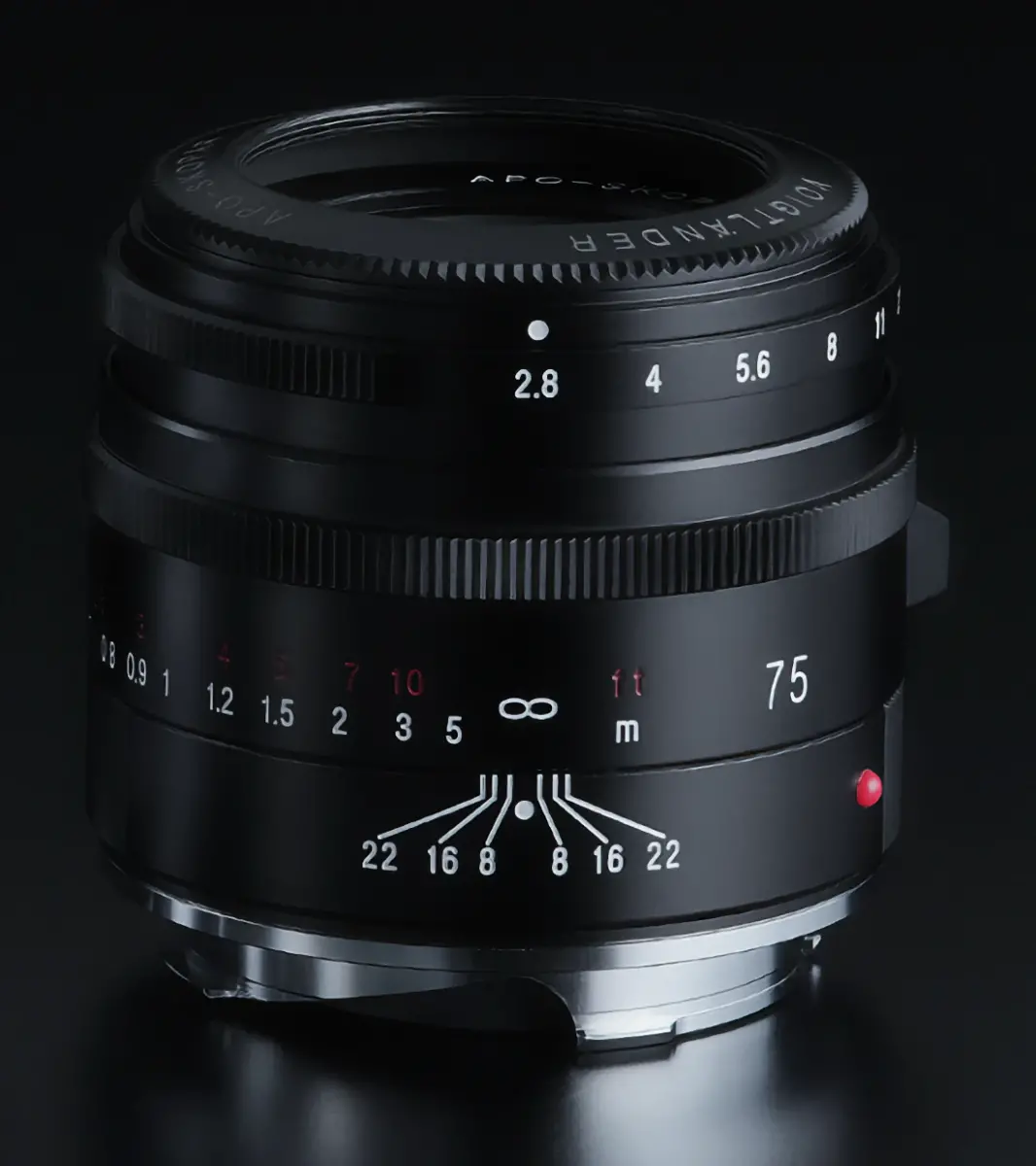

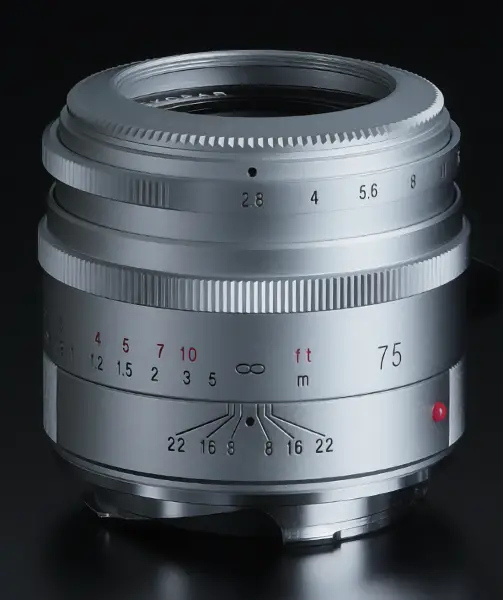

Voigtlander APO-Skopar 75mm F2.8 VM
BA396B / BA396A
Log-in to add this product to your favourites
Ask a question about this product
For Québec Residents — Disclosure under the Consumer Protection Act
In accordance with Québec’s Bill 29, Camtec Photo does not guarantee the availability of replacement parts, repair services, or information necessary to maintain or repair goods, unless otherwise specified by the manufacturer.
Description
Featuring an apochromatic design that minimizes axial chromatic aberration to near-zero levels, this lens delivers exceptional image quality. With a total length of just 44mm from the lens mount and a filter diameter of just 43mm, this is a compact medium telephoto the size of a standard 50mm lens. Even with a relatively fast F2.8 aperture the 75mm frameline will not be obstructed.
Apochromatic design
The apochromatic design that makes the on-axis chromatic aberration of RGB, as close to zero as possible.
High performance & compactness
The newly designed optical system uses abnormal partial dispersion lens for 4 out of 7 elements in 6 groups. The clean and simple structure realizes a length of only 44mm long.
Comes with a special metal hood
The included metal screw-on lens hood is specially designed so that only 3 mm protrudes when fitted. This ensures that the viewfinder frame remains visible when the hood is attached.
Manual focus that enables reliable focus operation
By adopting an all-metal helicoid unit processed and adjusted with high precision and high-quality grease that produces an appropriate torque, focusing with a smooth operation feeling and delicate focus adjustment is realized.
Bayonet type VM mount
A VM mount compatible with the Leica M mount is used for the lens mount.
Equipped with a rangefinder interlocking system
The high-precision rangefinder interlocking mechanism enables severe focusing near the maximum aperture.
Full-frame image circle
A generous image circle that supports full-frame 35mm format is secured. In addition, it achieves a very compact style compared to interchangeable lenses for SLR cameras.
Technical Data
| Technical Specifications | |
|---|---|
| Focal Length | 75mm |
| Aperture Ratio | 1:2.8 |
| Minimum Aperture | F22 |
| Lens Construction | 6 groups, 7 elements |
| Angle of View | 32.7° |
| Aperture Blades | 10 |
| Minimum Focus Distance | 0.7m |
| Rangefinder Coupling | ∞ to 0.7m (depending on camera body) |
| Dimensions (Ø × L) | 54.0 × 44.0 mm |
| Filter Size | 43mm |
| Weight | 191g |
| Hood | Included standard hood matched to lens colour |
```
