Voigtlander 40mm F2 Septon ASPH Nikon Z
BA394C
Log-in to add this product to your favourites
Ask a question about this product
For Québec Residents — Disclosure under the Consumer Protection Act
In accordance with Québec’s Bill 29, Camtec Photo does not guarantee the availability of replacement parts, repair services, or information necessary to maintain or repair goods, unless otherwise specified by the manufacturer.
Description

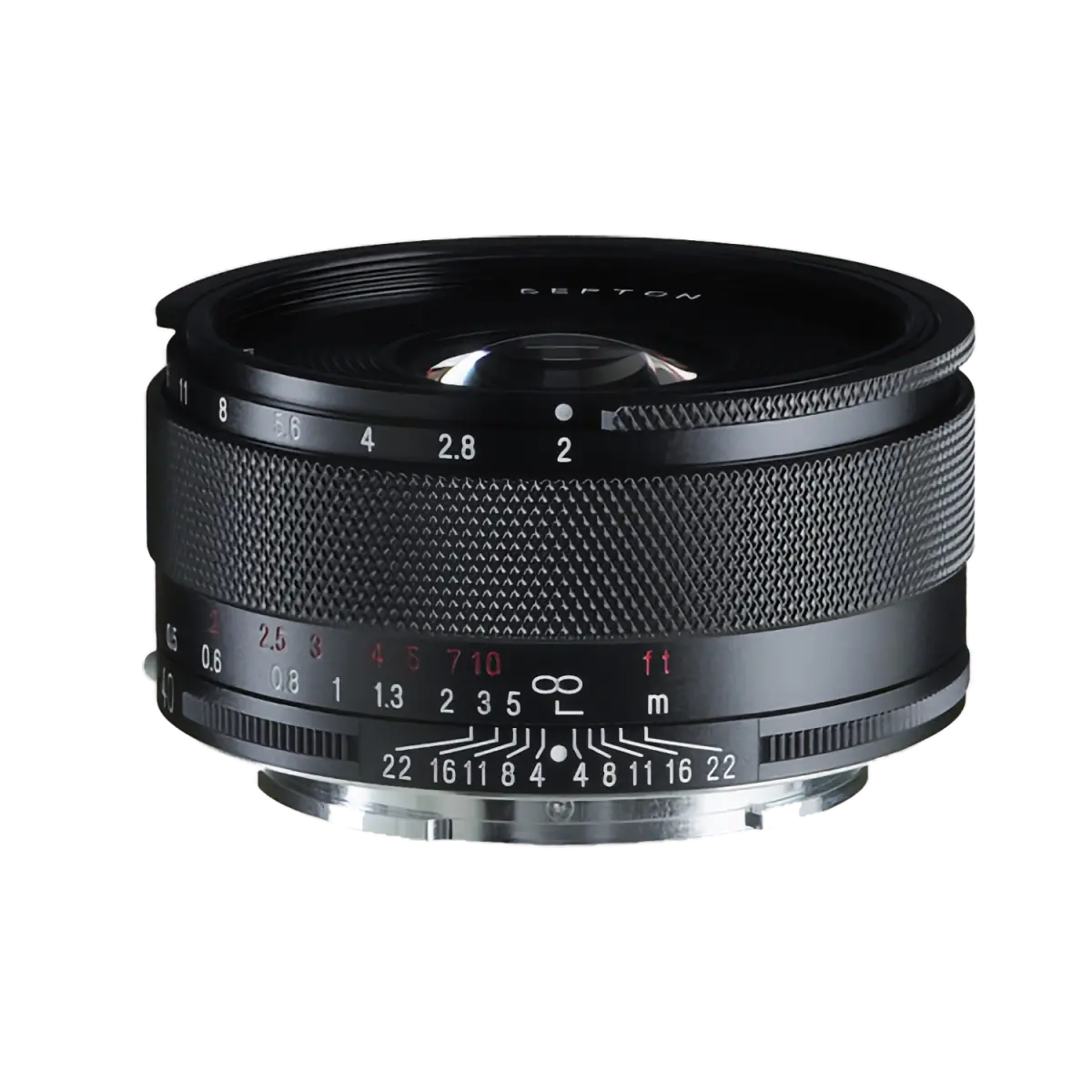

The Voigtländer 40mm F2.0 SEPTON Aspherical is a standard lens that combines a compact design with high image quality for full-frame cameras with Sony E-mount and Nikon Z-mount.
SEPTON was the name given to standard lenses developed for the Bessamatic and Ultramatic SLR cameras with central shutters, which were marketed in the late 1950s and 1960s as a new photographic platform intended to replace rangefinder cameras.
SEPTON refers to a lens whose optical performance was further enhanced by adding a lens element to the six-element design of the ULTRON—which debuted in 1950 for rangefinder cameras. It is considered one of Voigtländer’s legendary lenses.
The SEPTON 40mm F2 Aspherical lenses for E-mount and Z-mount are pancake-style standard lenses whose compact design is ideally suited for mirrorless cameras.
Optimized for full-frame sensors in Sony E-mount and Nikon Z-mount cameras, they achieve an aperture of f/2 while retaining the advantages of the compact Orthometar design. This is achieved by adding an aspherical lens to the six-element Orthometar design. The Orthometar design is characterized by a short optical length and extremely low distortion.
With a total length of just 30 mm from the bayonet mount (32 mm for the Z-mount), this lens is particularly easy to carry and always within reach. The 40-mm angle of view, which can also be used as a mild wide-angle, makes it the ideal everyday lens. The minimum focusing distance of 0.3 m is excellent for tabletop and close-up shots. Both the E-mount and Z-mount versions come with a dome-shaped, screw-on metal lens hood that preserves the lens’s compact design.
Technical Data
| Focal Length | 40 mm |
|---|---|
| Mount | Sony E |
| Maximum Aperture | f/2 |
| Minimum Aperture | f/16 |
| Optical Design | 7 elements in 6 groups |
| Field of View | 57.3° |
| Diaphragm Blades | 10 |
| Minimum Focusing Distance | 30 cm |
| Filter Size | 52 mm |
| Maximum Diameter | 61.7 mm |
| Length | 30 mm |
| Weight | 165 g |
| Colour | Black |
| Included Accessories | Front lens cap, rear lens cap |
| Optional Accessories | LH-14, LH-15 lens hoods |
