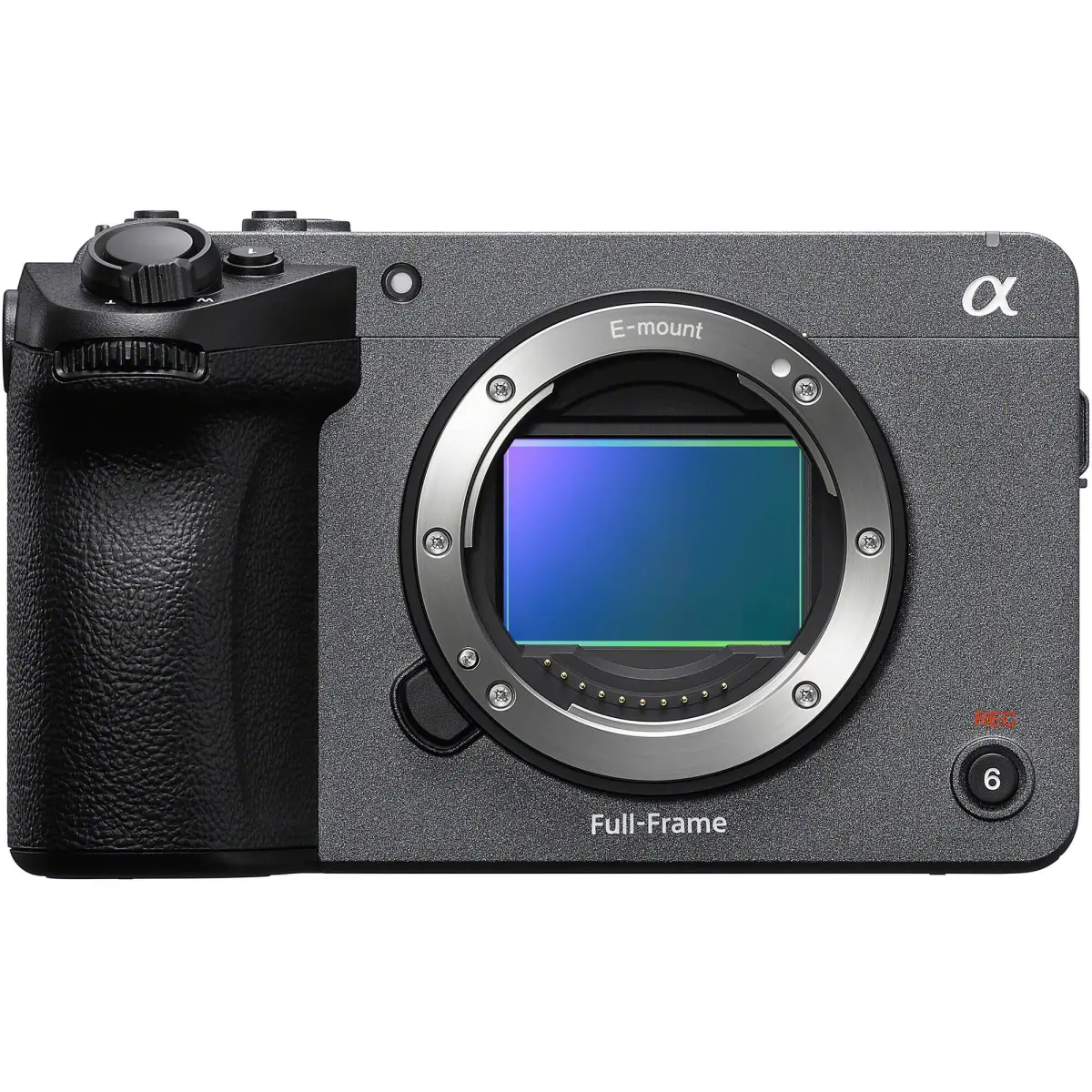

Sony FX5 Full-Frame Cinema Camera
ILMEFX5B
Log-in to add this product to your favourites
Ask a question about this product
For Québec Residents — Disclosure under the Consumer Protection Act
In accordance with Québec’s Bill 29, Camtec Photo does not guarantee the availability of replacement parts, repair services, or information necessary to maintain or repair goods, unless otherwise specified by the manufacturer.
Description
The Sony FX5 features a 5K full-frame stacked Exmor RS CMOS sensor with fast readout, low noise, and over 15 stops of dynamic range, delivering exceptional detail, smooth gradation, and natural colour in challenging lighting conditions.
Powered by the BIONZ XR2 processor with integrated AI, the camera offers advanced subject recognition, Real-time Eye AF, Auto Tracing White Balance, and highly reliable autofocus with 759 phase-detection points for precise tracking of people, animals, and birds.
Capture in full-frame 5K Open Gate recording up to 60 fps, 4K up to 120 fps, and record 16-bit X-OCN compressed RAW internally without an external recorder. Multiple RAW codecs provide the flexibility to balance image quality and file size.
Three Base ISO settings (800, 4000, and 12800) and Dual Gain technology maximize dynamic range while minimizing noise, producing clean images from bright daylight to extremely low-light environments.
Sony's renowned S-Cinetone, S-Log3, S-Gamut3, and S-Gamut3.Cine colour profiles provide cinematic colour reproduction, natural skin tones, and extensive grading flexibility, with support for user LUTs and seamless colour matching with VENICE 2.
Built-in anamorphic de-squeeze supports 1.3x to 2.0x lenses, while 5-axis in-body image stabilization, Dynamic Active Mode, and stabilization metadata help produce smoother handheld footage.

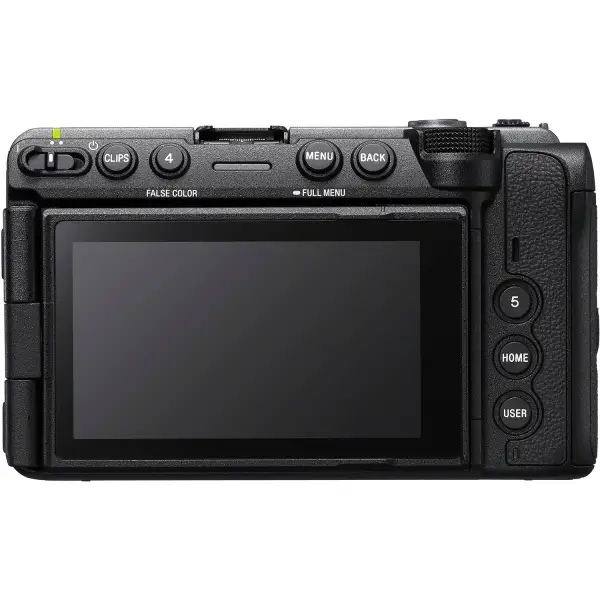

Designed for professional filmmaking, the lightweight body includes dual CFexpress Type A/SD card slots, a high-brightness 3.5-inch multi-angle touchscreen, CineAlta-inspired controls, customizable tally lights, multiple accessory mounting points, and an efficient cooling system for extended recording sessions.

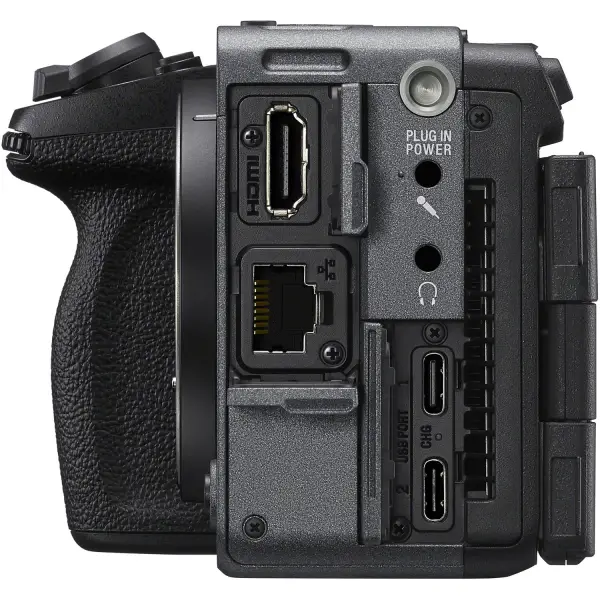

Extensive connectivity includes HDMI Type A, dual USB-C ports with Power Delivery, wired 2.5GbE LAN, Wi-Fi 6, remote operation through Sony Monitor & Control, and full compatibility with Catalyst Prepare for stabilization, lens compensation, colour management, and post-production workflows.
The FX5 is built for demanding productions with a dust- and moisture-resistant magnesium alloy body, long battery life, advanced monitoring tools including waveform, false colour, histogram, and focus map, plus accessibility features such as screen reader support and menu magnification. Future firmware updates will add additional recording modes and workflow enhancements.
Technical Data
| Lens Mount | Sony E Mount |
|---|---|
| Sensor | 35mm Full-Frame Exmor RS CMOS Sensor (35.9 × 24.0 mm) |
| Resolution | 18.2 MP Total, 16.6 MP Effective |
| Dynamic Range | 15 Stops (S-Log3) |
| ISO Range | ISO 320 to 409,600 (Auto Available) |
| White Balance Range | 2,000K to 15,000K |
| Optical Low-Pass Filter | Yes |
| Dust Reduction | Yes |
| Video Formats | X-OCN, XAVC HS (H.265/HEVC), XAVC S (H.264/AVC) |
| Internal Audio | Up to 4-channel PCM/LPCM, 96 kHz / 32-bit Float |
| RAW Recording | Internal X-OCN and HDMI RAW Output |
| Proxy Recording / Timecode | Yes |
| Autofocus | Fast Hybrid AF with 759 Phase-Detection Points |
| Subject Recognition | Human, Animal and Bird |
| Display | 3.5" Touchscreen LCD, 2.76M Dots, Multi-Angle |
| Image Stabilization | 5-Axis Sensor-Shift with Standard, Active and Dynamic Active Modes |
| Clear Image Zoom | 1.5× (4K), 2× (HD) |
| Shutter Speed | 64 sec to 1/8000 sec (Movie Mode) |
| Memory Card Slots | Dual CFexpress Type A / SDXC UHS-I & UHS-II |
| Connectivity | HDMI Type A, USB-C, USB 2.0, 2.5 GbE Ethernet, Wi-Fi 6, Bluetooth 5.3 |
| Audio | Dual XLR Inputs, 3.5 mm Mic Input, 3.5 mm Headphone Output, Built-In Stereo Microphone |
| IP Streaming | RTMP, RTMPS and SRT up to 4K |
| Battery | NP-SA100 Rechargeable Battery |
| Battery Life | Up to 170 Minutes Continuous Recording |
| Power | USB-C with USB Power Delivery |
| Dimensions | 132.2 × 79.0 × 87.0 mm |
| Weight | 643 g (Body), 734 g with Battery and Card |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| In the Box | NP-SA100 Battery, BC-SAD17 Charger, XLR Handle Unit, Body Cap, Connector Covers and Accessory Mount Kit |
