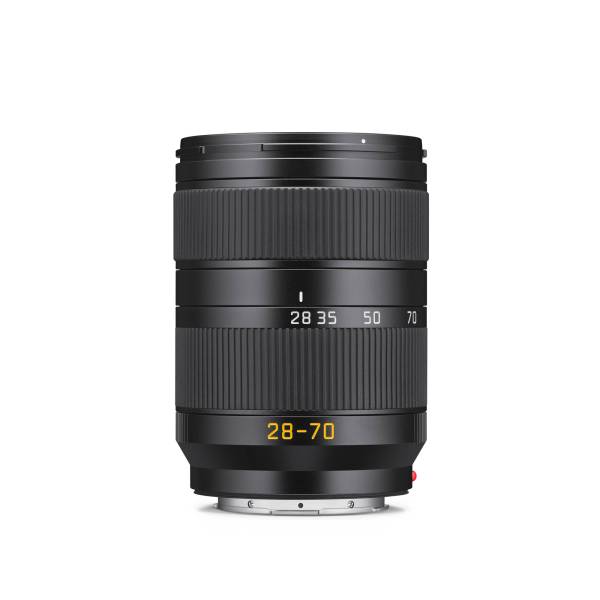

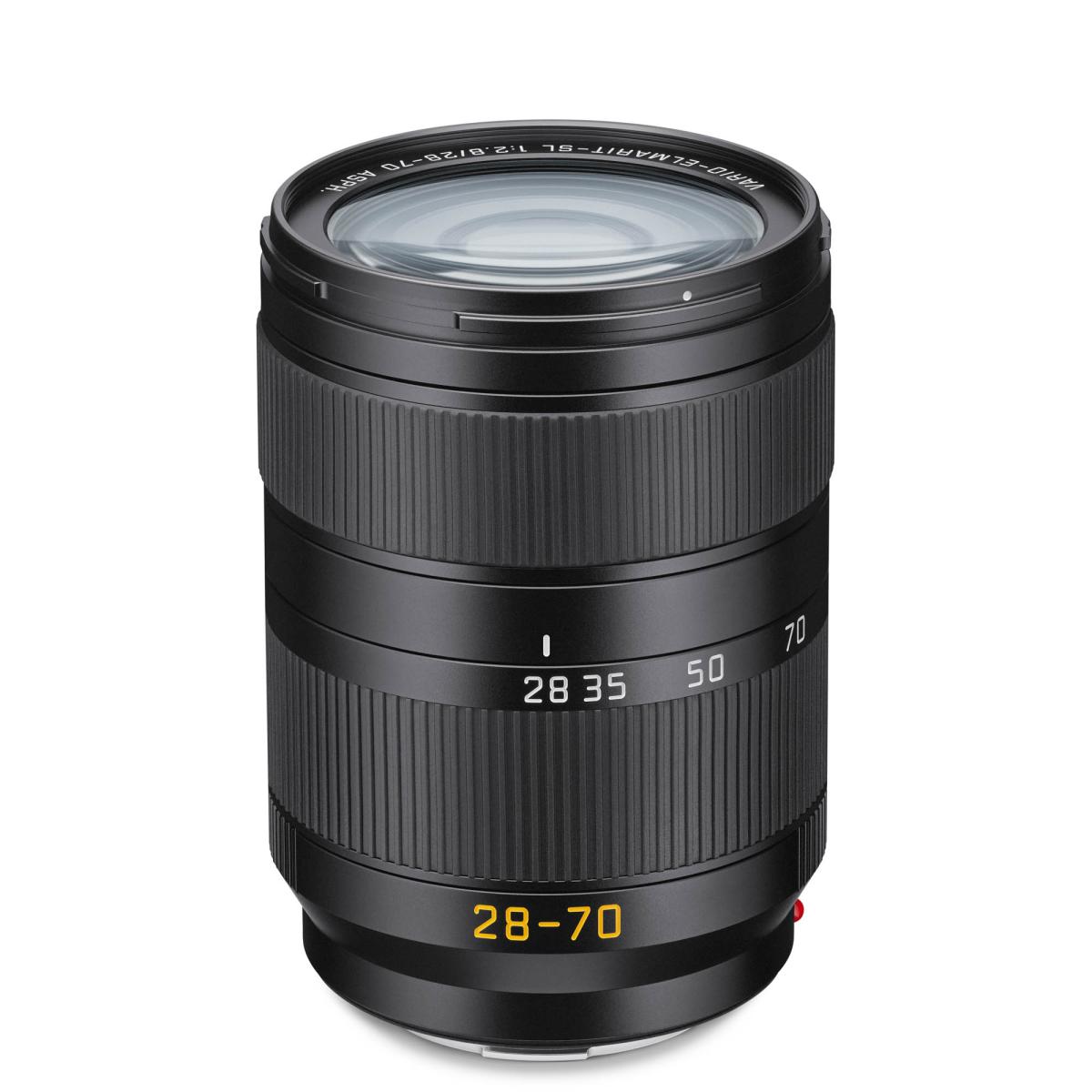

Leica Vario-Elmarit-SL 28-70mm f/2.8 ASPH
11196
Log-in to add this product to your favourites
Ask a question about this product
For Québec Residents — Disclosure under the Consumer Protection Act
In accordance with Québec’s Bill 29, Camtec Photo does not guarantee the availability of replacement parts, repair services, or information necessary to maintain or repair goods, unless otherwise specified by the manufacturer.
Description
The Vario-Elmarit-SL 28-70 f/2.8 ASPH. is the most compact and lightweight standard zoom in the SL-System, a fast everyday lens that spans wide-angle to short telephoto while holding a constant f/2.8 aperture across the whole range, equally suited to photography and video.
Its optical design uses sixteen elements in twelve groups, including three elements with aspherical surfaces on both sides and a floating element that keeps sharpness consistent throughout the focusing range, down to 0.19 m at 28 mm for a 1:3.3 maximum magnification. Updated coatings ensure accurate colour and high contrast.
Weighing just 572 g, with an all-metal magnesium-and-aluminium body, dust and splash sealing and an AquaDura coating front and rear, it shares the E67 filter size of the APO-Summicron-SL primes. It is compatible with SL cameras and the wider L-Mount Alliance.
Technical Data
| Leica Vario-Elmarit-SL 28-70 f/2.8 ASPH.: Technical Specifications | |
|---|---|
| Lens | |
| Lens | Vario-Elmarit-SL 28-70 f/2.8 ASPH. |
| Angle of View | |
| Angle of view (diagonal), full-frame (24 × 36 mm) | 28 mm: approx. 75° 70 mm: approx. 34° |
| Lens System | |
| Number of lenses / groups | 16 / 12 |
| Number of aspherical surfaces | 6 (on 3 elements, both sides) |
| Floating element | Yes |
| Focusing | |
| Focus range | 0.19 m to ∞ (at 28 mm) |
| Setting | Autofocus or manual (selected on the camera) |
| Autofocus drive | Stepping motor, internal focus |
| Largest scale | 1:3.3 (at 28 mm) |
| Aperture | |
| Aperture range | f/2.8 (constant) to f/22 |
| Setting / Function | Electronically controlled, set on the camera; half or third values |
| Smallest aperture | 22 |
| Mount & Features | |
| Bayonet | Leica L bayonet with contact strip |
| Filter thread | E67 |

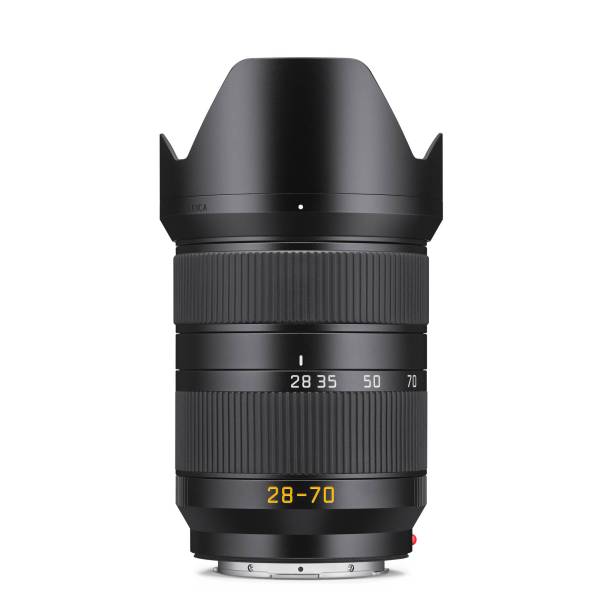

| Lens hood | Included |
| Image stabilisation | None (no OIS) |
| Weather sealing | Magnesium/aluminium body, dust and splash protected; AquaDura front and rear coating |
| Dimensions & Weight | |
| Length | Approx. 102 mm |
| Diameter | Approx. 72 mm (max.) |
| Weight | Approx. 572 g |
