Description

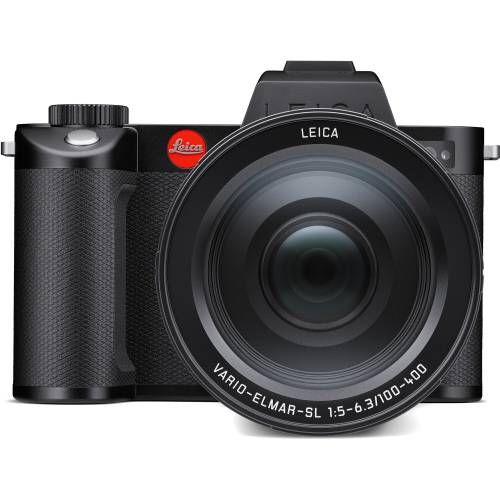

The Vario-Elmar-SL 100-400 f/5-6.3 is the longest and widest-ranging zoom of the SL-System, a compact, lightweight super-telephoto for nature, wildlife, sports and action. Despite its 400 mm reach it weighs about 1.48 kg, and its telescoping design keeps it compact at 198 mm when retracted.
Its optical system comprises twenty-two elements in sixteen groups with a nine-blade diaphragm; a single lightweight focusing element delivers fast, silent autofocus, focusing to 1.1 m at 100 mm and 1.59 m at 400 mm (about 1:4.1 at 400 mm). Built-in multi-axis optical image stabilisation gives up to four stops, rising to about six stops combined with in-body stabilisation.
An ARCA-SWISS compatible, removable tripod foot, all-metal weather-sealed construction and AquaDura coatings round out the design; like the other SL zooms it uses the E82 filter size. The Extender L 1.4x extends the range to 140-560 mm.
Technical Data
| Leica Vario-Elmar-SL 100-400 f/5-6.3: Technical Specifications | |
|---|---|
| Lens | |
| Lens | Vario-Elmar-SL 100-400 f/5-6.3 |
| Angle of View | |
| Angle of view (diagonal), full-frame (24 × 36 mm) | 100 mm: 23.8° 400 mm: 6.4° |
| Lens System | |
| Number of lenses / groups | 22 / 16 |
| Focusing | |
| Focus range | 100 mm: 1.1 m to ∞ 400 mm: 1.59 m to ∞ |
| Setting | Autofocus or manual (selected on the camera) |
| Autofocus drive | Stepping motor, single lightweight focusing element, internal focus |
| Largest scale | 100 mm: 1:9.3 400 mm: 1:4.1 |
| Aperture | |
| Aperture range | f/5-6.3 to f/22 |
| Setting / Function | Electronically controlled, set on the camera; half or third values |
| Number of diaphragm blades | 9 |
| Smallest aperture | 22 |
| Stabilisation | |
| Optical image stabilisation | Multi-axis, up to 4 stops (up to about 6 stops with in-body stabilisation) |
| Mount & Features | |
| Bayonet | Leica L bayonet with contact strip |
| Filter thread | E82 |
| Lens hood | Included |
| Tripod foot | Removable, ARCA-SWISS compatible |
| Teleconverter | Compatible with Extender L 1.4x (140-560 mm) |
| Weather sealing | Magnesium/aluminium body, dust and splash protected; AquaDura coating |
| Dimensions & Weight | |
| Length | Approx. 198 mm (retracted) |
| Diameter | Approx. 88 mm |
| Weight | Approx. 1480 g (1.48 kg) |
