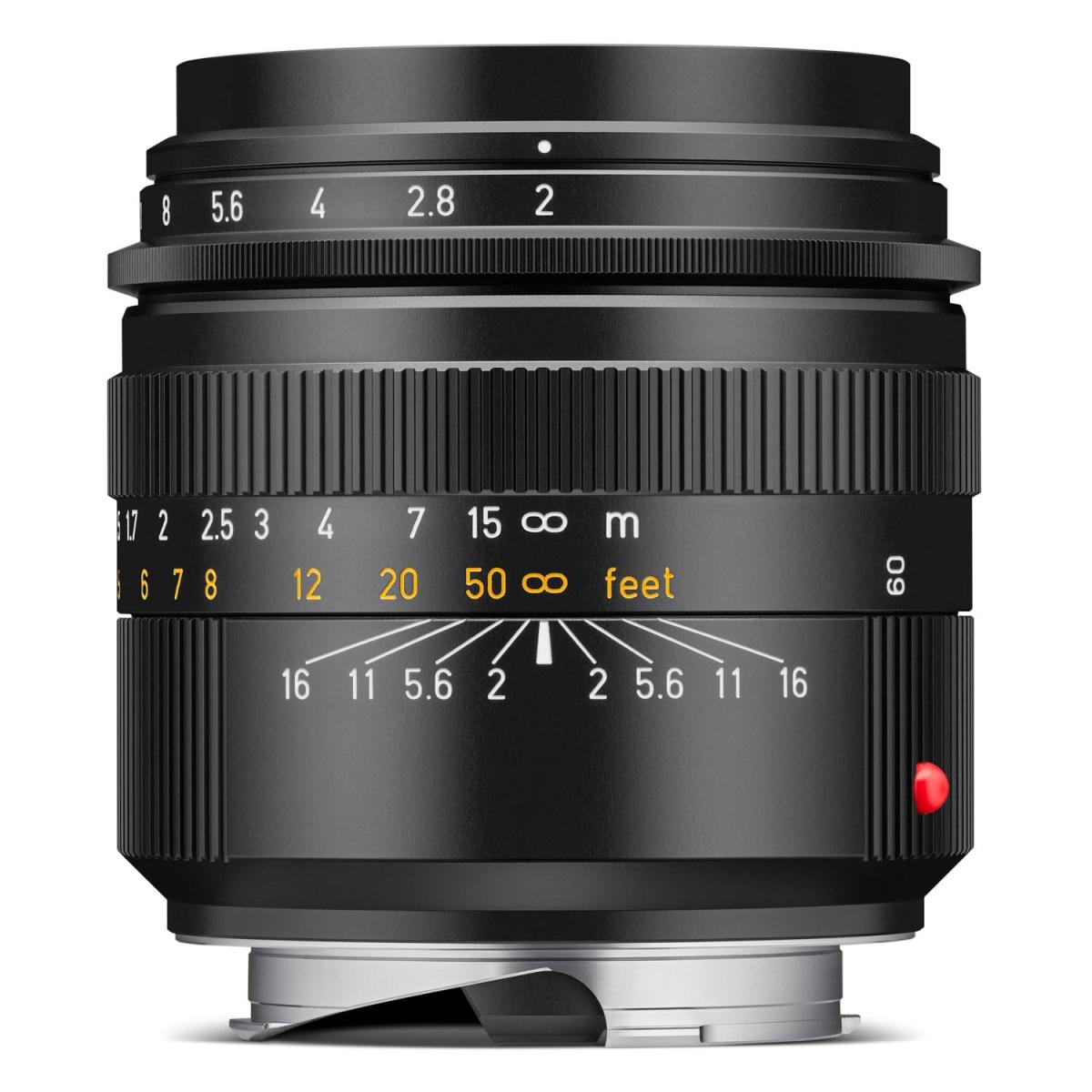

Leica Summicron-M 66mm f/2 Black Anodized
11099
Log-in to add this product to your favourites
Ask a question about this product
For Québec Residents — Disclosure under the Consumer Protection Act
In accordance with Québec’s Bill 29, Camtec Photo does not guarantee the availability of replacement parts, repair services, or information necessary to maintain or repair goods, unless otherwise specified by the manufacturer.
Description
Back in the 1960s, an engineer named Walter Mandler was working at Ernst Leitz Canada when the US Navy came calling. They needed a lens for covert reconnaissance work, something unremarkable to look at but capable of extraordinary resolution. What came out of that request was the Elcan 66mm f/2, only about 200 of which were ever made, making it one of the rarest lenses in the entire Leica M lineup. The odd 66mm focal length wasn't arbitrary either; it was the sweet spot between sharpness, contrast, and keeping the whole package small enough to stay hidden. You'll often find this lens paired with the Leica KE-7A, the military cousin of the M4, and some accounts suggest it made its way to allied forces during the Cold War as well. One striking detail: each kit shipped with instructions on how to destroy the camera and lens if capture seemed likely, a small reminder of just how sensitive these assignments were.

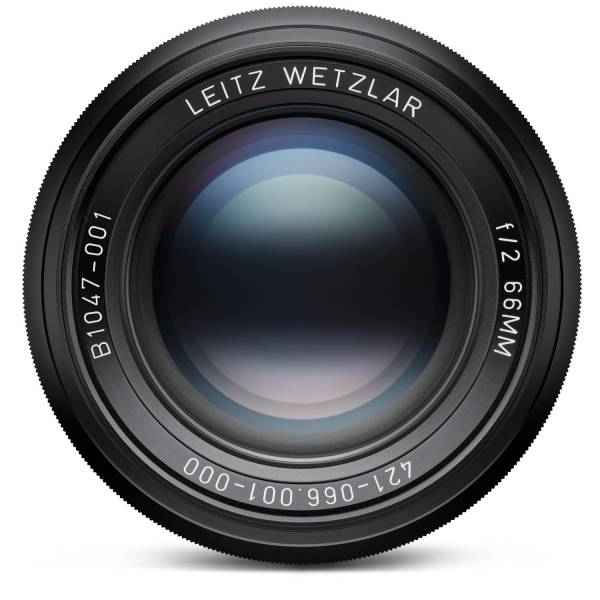

Now, decades later, Leica is bringing this story back with the Summicron-M 66 f/2, the first time this focal length has ever been offered outside of a military contract. The optical formula borrows from the original but has been brought up to modern standards. A few mechanical quirks were kept on purpose: the aperture ring spins the opposite way from a standard M lens, the distance scale follows old military conventions, and the engravings echo the original design, done in a noticeably finer typeface than what you'd see on Leica's current lineup. Only 660 units are being made, each stamped with a serial number and the optical calculation number B1047, a nod to the C283 found on the original Elcan. There's also a tiny "60" engraved on the barrel, marking the precise 66.0mm focal length, a convention that precision lenses used to follow back in the day.
Optically, it carries the Classic Line signature: soft bokeh paired with strong contrast, and when stopped down, the resolution sharpens up considerably, a hint at what this lens was really built for.
Technical Data
| Angle of view (diagonal/horizontal/vertical) | Full-frame (24 × 36 mm): 36.3°/30.5°/20.6° |
| Lens system (lenses/assemblies) | 6/5 |
| Position of the entrance pupil before the bayonet | 31.40 mm |
| Focus range | 1 m to infinite |
| Focusing | Scale |
| Smallest object field / Largest scale | Full-frame: 321 × 481 mm; 1:13.4 |
| Diaphragm (setting/function) | Click-stop diaphragm with half-increment lock settings |
| Smallest aperture | f/16 |
| Number of diaphragm blades | 9 |
| Bayonet | Leica M bayonet |
| Filter thread | E49 |

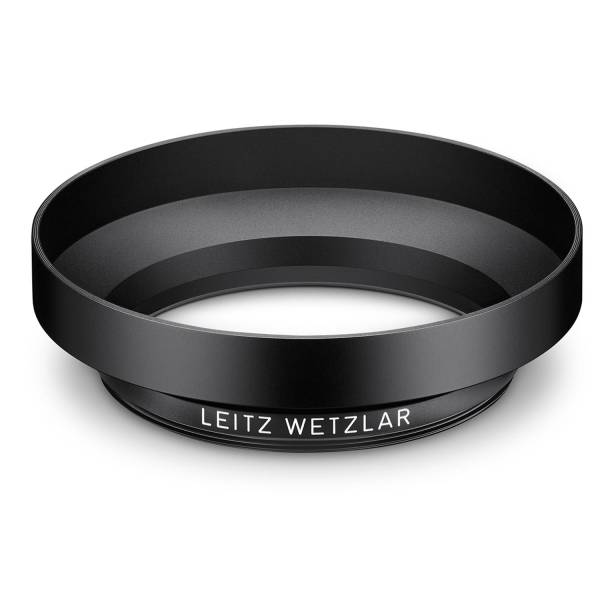

| Lens hood | Screw-on |
| Dimensions (length / diameter) | Approx. 60.1 mm / Approx. 60 mm |
| Weight | Approx. 456 g |
